Item# 28088
Click to enlarge

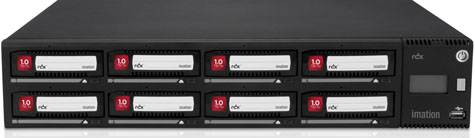

Imation RDX A8 Library - 0-Drive (Empty Chassis) Part#
28088
The Best of Tape and
Hard Disk
The RDX A8 ensures reliable
performance of data-intensive business operations,
delivering the scalability, portability and cost of
tape, and the speed and durability of disk. The
multi-bay Imation RDX A8 makes this industry-standard
technology your clear choice for managing large volumes
of data quickly and reliably.
High Performance and
Scalable Capacity
This multi-bay device offers
backward and forward compatibility with all RDX
cartridges, plus iSCSI-based networking and desktop or
rackmount options. Cartridges range from 160GB to 1TB,
for a total capacity of up to 8TB (up to eight 1 TB
cartridges) of online and unlimited offline capacity. As
RDX cartridge capacity grows, so will your data storage
capabilities. Combining large capacity and high
performance, the A8 can handle the most demanding data
storage needs of small- and medium-sized businesses –
and still have room to grow. This system is an ideal
replacement for SMB tape libraries such as DDS/DAT, VXA
and DAT.
- Overview / Features
- Technical Specs
- Data Sheet
- Part Nos / Desc
Imation RDX A8 Overview and Features
Multiple Operating Modes
Operating in Tape Emulation mode, the A8
functions as a single drive, spanning all available cartridges to
provide seamless handling of large data sets. In JBOD mode, the A8
gives you a separate drive letter for each bay.
Award Winning RDX Technology
The RDX A8 is built off of award-winning RDX
technology, the world’s leading removable disk storage:
• High Performance and Speed
• Lowest Total Cost of
Ownership
• Forward and Backward Compatibility
• Expandable and Scalable
• Industry Standard –
Supported by major OEMs
Applications
From internal network backups to transporting
large volumes of data, the A8 provides reliable performance for
data-intensive applications in these industries and many more:
| - Data Logging and Mining |
- Video Production and Broadcast |
| - Medical Imaging Services |
- Legal Records and Evidence |
| - Geophysical Monitoring |
- Surveillance and Specialized Video |
| - Graphic Design and Photography |
- Cloud Backup and Disaster Recovery |
RDX A8 Loader Technical Specifications
| Unit Capacity
, Uncompressed |
160GB-8TB (8, 1TB cartridges) |
|
| Tranfer Rate |
Up to 45MB/sec average sustained |
|
| Cartridge |
Rugged 2.5” mobile SATA hard disk drive |
|
| Cartridge Capacity, Uncompressed |
160GB–1TB |
|
| Compatibility |
Forward and backward compatible with all
RDX cartridges |
|
| Unit Dimensions |
Height: 3.417 in / 86.8 mm
Width: 17.508 in / 444.7 mm
Depth: 12.075 in / 306.7 mm inc. bezel
U Height: 2U |
|
| Unit Weight |
Weight: 13.95 lb / 6.33 kg |
|
| Cartridge Dimensions |
0.93 in. H x 3.40 in. W x 4.69 in.
L
(23.7 mm H x
86.6 mm W x 119.2 mm L) |
|
| Warranty |
3 year limited |
|
Key Benefits and Features
| Fast & Efficient |
Scalable & Compatible |
| Average sustained data transfer rates of
up to 45MB/sec for high productivity. Random access provides
shorter seek times than sequential access tape. |
Forward and backward compatible with all
existing and future RDX cartridges from 160GB to 1TB. |
|
| Flexible |
Reliable |
| Can be configured for Tape Emulation mode
or iSCSI Storage (JBOD) mode. Can be placed on a desktop or
installed in a 2U rackmount space. |
Fewer moving parts than tape autoloaders;
reduced risk of mechanical failure. Advanced power
management; lower power consumption than tape drives. |
|
| Networkable |
Affordable |
| Ethernet connectivity for integration
into existing business networks. |
Initial system investment is
significantly lower than for a tape drive and autoloader. |
|
Imation RDX A8 Data Sheet
Imation RDX A8 Removable Disk Storage System Data Sheet
Part Numbers and Descriptions
| CARTRIDGES |
| UPC |
DESCRIPTION |
|
| 26607 |
RDX 160GB cartridge |
| 27428 |
RDX 320GB cartridge |
| 27083 |
RDX 320GB cartridge TAA compliant |
| 27127 |
RDX 500GB cartridge |
| 27835 |
RDX 640GB cartridge |
| 27958 |
RDX 750GB cartridge |
| 27957 |
RDX 1TB cartridge |
|
| DOCKING STATIONS |
|
| UPC |
DESCRIPTION |
|
| 28232 |
RDX A8 Loader - 8 Bay 8TB Library Loader |
| 28088 |
RDX A8 Loader - 8 Bay Empty Chassis (0-Drive) |
| 26960 |
RDX external USB docking station |
| 27138 |
RDX internal USB docking station |
| 27771 |
RDX internal 3.5" SATA docking station |
|
|
|
